Description

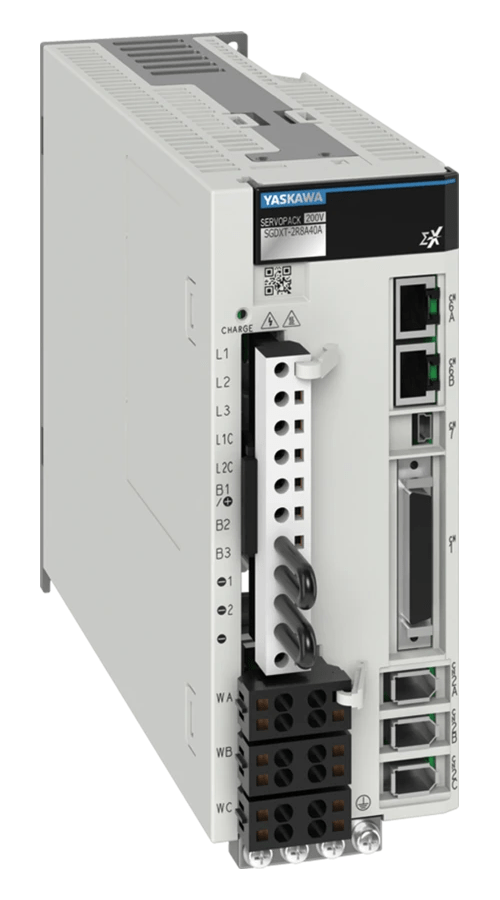

SGDXT triple-axis servopack supports Yaskawa’s full line of rotary, linear, and direct drive servo motors. The SIGMA X technology adds 3.5 kHz bandwidth to improve speed and precision. While Yaskawa’s advanced servo tuning algorithms include world-class vibration suppression, ripple and friction compensation, advanced autotuning, and tuning-less commissioning right out of the box
SIGMA X is the latest in YASKAWA’s prestigious line up of servo systems. Building on the legacy of it’s predecessors, SIGMA X comes with a range of new and improved features including speed ripple compensation, greater error detection, vibration monitoring, and load fluctional compensation.
The SIGMA X system is available in Analogue/Pulse, MECHATROLINK III/IV, and EtherCAT formats. The latter of which allows for seamless linking with the new YASKAWA iCube Control platform.
| Model Number | SGDXT – 1R6A[XX]A | |
| Max. Applicable Motor Capacity (W) | 200 | |
| Continuous Output Current (A) | 1.6 | |
| Instant Max. Output Current (A) | 5.9 | |
| Power Supply Voltage (VAC) | 200 | |
